Z Type Bucket Elevator: A Space-Saving Solution for Food Processing Lines

Z Type Bucket Elevator: A Space-Saving Solution for Food Processing Lines


In modern food processing plants, production efficiency is not only determined by processing equipment. The way products are transferred between different stages of the production line can also have a significant impact on productivity, factory space, and overall line performance.


When bulk food products need to be transported from a lower level to a higher processing or packaging machine, traditional horizontal conveying methods may require long conveyors and considerable floor space.


A Z Type Bucket Elevator provides another solution.


By using vertical space for product elevation, a Z type bucket elevator can help move bulk food products between different production levels while reducing the horizontal conveying distance. This makes it a practical conveying solution for food processing and packaging lines where factory space is limited.



What Is a Z Type Bucket Elevator?


A Z type bucket elevator is a continuous conveying system designed to transport bulk or granular products between different heights.


Its conveying path typically includes:

Horizontal Infeed → Inclined/Vertical Elevation → Horizontal Discharge


This Z-shaped conveying configuration allows products to enter the elevator at a lower position, travel upward, and then discharge horizontally at a higher level.


Compared with a simple vertical lifting system, the Z-type configuration can make it easier to connect equipment located at different heights.

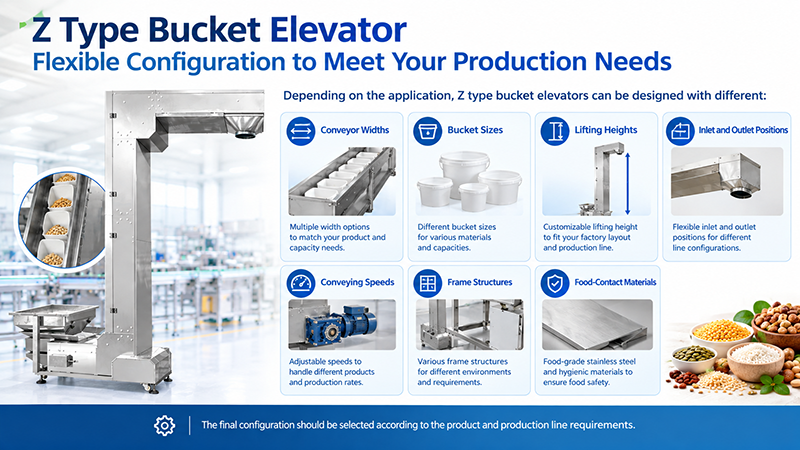

Depending on the application, Z type bucket elevators can be designed with different:

●  Conveyor widths
●  Bucket sizes
●  Lifting heights
●  Inlet and outlet positions
●  Conveying speeds
●  Frame structures
●  Food-contact materials

The final configuration should be selected according to the product and production line requirements.



Why Is Vertical Conveying Important in Food Processing?


Many food production lines contain equipment installed at different heights.


For example, a typical production process may include:

Feeding → Conveying → Processing → Elevating → Weighing → Packaging


The weighing or packaging equipment may be installed at a higher level than the feeding equipment.


If products are transferred only through horizontal conveyors, the production line may require additional floor space to gradually move products toward the higher equipment.


A Z type bucket elevator takes advantage of the factory's vertical space.


Instead of continuously extending the conveying distance horizontally, products can be lifted upward and transferred to the required height.


This can help manufacturers optimize production line layouts, particularly in factories where floor space is limited.




Key Benefits of a Z Type Bucket Elevator

1. Efficient Use of Factory Space


One of the main advantages of a Z type bucket elevator is its ability to use vertical space.


Food factories often have limited floor space but sufficient ceiling height. A vertical or Z-shaped conveying solution can make better use of this available space.


This can be particularly useful when:

●  Production equipment is installed at different heights
●  Floor space is limited
●  Existing production lines need to be upgraded
●  Long horizontal conveyors are difficult to install
●  Multiple machines need to be connected


By reducing unnecessary horizontal conveying distance, a Z type bucket elevator can help create a more compact production line layout.


2. Suitable for Bulk Food Products


Z type bucket elevators are commonly used for products that are difficult or inefficient to transport using traditional flat conveyors.


Typical applications may include:

●  Nuts
●  Seeds
●  Cereals
●  Grains
●  Snacks
●  Candy
●  Potato chips
●  Frozen food
●  Dried fruit
●  Granular products
●  Other free-flowing bulk foods


The bucket structure allows individual portions of product to be collected and lifted to a higher level before being discharged.



3. Connects Equipment at Different Heights


Production lines often contain equipment with different inlet and outlet heights.


For example, a Z type bucket elevator can connect:


Bulk Product Hopper → Bucket Elevator → Multihead Weigher → Packaging Machine


In another application:


Processing Machine → Bucket Elevator → Storage Hopper → Weighing System


This makes the elevator not simply a lifting machine, but an important connection between different stages of a production line.





What Food Products Can Be Conveyed by a Z Type Bucket Elevator?


The product characteristics are an important factor when selecting a bucket elevator.


Nuts and Seeds

Products such as peanuts, almonds, cashews, sunflower seeds, and other nuts or seeds are commonly handled as bulk products.


A bucket elevator can transfer these products from a lower feeding position to a higher weighing or packaging machine.


Snacks

Potato chips, crackers, popcorn, and other snacks can require gentle and controlled conveying to minimize product damage.


The bucket configuration and conveying speed should be selected according to the product characteristics.


Cereals and Grains


Granular products such as rice, cereals, grains, and similar materials can be suitable for bucket conveying applications.


The required capacity and bucket volume should be determined based on the production rate.



Candy and Confectionery


Small candies, gummies, and other confectionery products may also require vertical product transfer between processing and packaging equipment.


The conveying system should be designed according to product size, shape, and fragility.





How to Choose the Right Z Type Bucket Elevator?


Selecting the correct bucket elevator requires more than simply choosing a lifting height.


1. Product Characteristics

First, determine:

●  Product size
●  Product weight
●  Bulk density
●  Moisture content
●  Temperature
●  Fragility
●  Flowability


Different products may require different bucket sizes, materials, and conveying speeds.



2. Required Capacity


The required throughput determines the appropriate bucket size, bucket spacing, conveyor width, and operating speed.


For example, a production line processing several tons of product per hour may require a different configuration from a small packaging line.


The target capacity should therefore be provided before the equipment is designed.



3. Lifting Height

The vertical distance between the feeding point and discharge point is one of the most important design parameters.


The manufacturer normally needs to know:


●  Inlet height
●  Outlet height
●  Total lifting height
●  Available ceiling height

This information helps determine the overall structure of the elevator.



4. Factory Layout


The available installation space should also be considered.


Important dimensions include:

●  Overall length
●  Overall width
●  Overall height
●  Inlet position
●  Outlet position
●  Distance from surrounding equipment


A properly designed Z type bucket elevator should fit naturally into the existing production line.




5. Hygiene Requirements


Food-contact equipment needs to meet the hygiene requirements of the application.


Depending on the food product and production environment, manufacturers may consider:


●  Stainless steel construction
●  Food-grade contact components
●  Easy-to-clean surfaces
●  Accessible components
●  Reduced product accumulation areas
●  Suitable conveyor buckets

For products requiring frequent sanitation, equipment accessibility and cleaning efficiency should be considered during the design stage.



How Does a Z Type Bucket Elevator Fit Into a Food Production Line?


A Z type bucket elevator is often used as part of a complete conveying and packaging system.


For example:

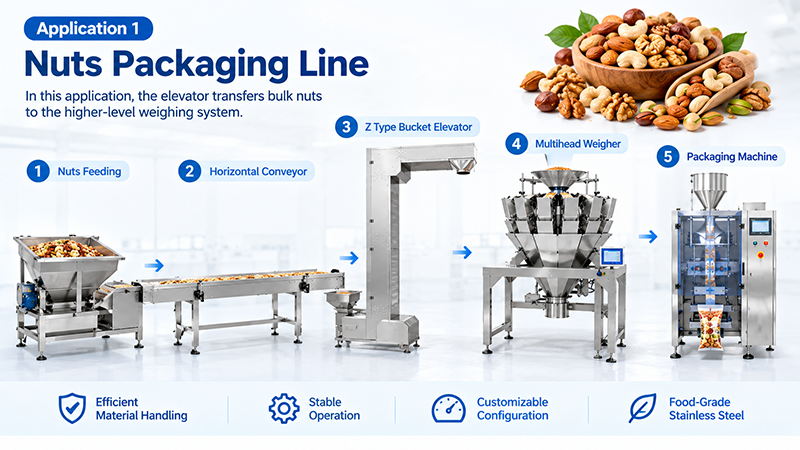

Application 1: Nuts Packaging Line


Nuts Feeding → Horizontal Conveyor → Z Type Bucket Elevator → Multihead Weigher → Packaging Machine


In this application, the elevator transfers bulk nuts to the higher-level weighing system.



Application 2: Snack Packaging Line


Snack Feeding → Vibratory Feeder → Z Type Bucket Elevator → Weighing System → Packaging Machine


The elevator provides the height difference required between the feeding and weighing equipment.


Application 3: Food Inspection Line


Product Feeding → Z Type Bucket Elevator → Weighing → Metal Detection → X-ray Inspection → Packaging


In an automated food processing system, the bucket elevator can serve as one of the conveying links between different inspection and packaging stages.




Build a More Space-Efficient Food Processing Line


Factory space is becoming an increasingly important consideration in modern food processing plants.


Instead of expanding the production line horizontally, manufacturers can sometimes make better use of existing vertical space.


A Z Type Bucket Elevator combines horizontal and vertical conveying into one system, making it suitable for transferring bulk food products between equipment installed at different heights.


From nuts and snacks to cereals, grains, candy, and other bulk products, the right bucket elevator configuration can help connect feeding, weighing, inspection, and packaging equipment into a more continuous production process.


However, the correct design depends on the product, required capacity, lifting height, factory layout, hygiene requirements, and downstream equipment.


If you are planning a new food processing line or upgrading an existing conveyor system, providing us with these details will help us develop a "Z-type" bucket elevator solution tailored to your specific production requirements.
