Vertical Lifting System
Z-Type Bucket Elevator
The Z-Type Bucket Elevator is an automated conveying equipment that combines vertical lifting and horizontal transport of materials. It adopts a Z-shaped structural layout to achieve continuous material transfer from low-level feeding, vertical lifting, to high-level horizontal transport. The equipment can be customized according to the production line layout, conveying height, and material characteristics, and is widely used in the food, agriculture, chemical, and daily chemical industries. Its modular design allows for flexible matching of different bucket sizes, conveying speeds, and capacity requirements, achieving stable, continuous, and efficient material transport, effectively saving production space and improving the operating efficiency of automated production lines.
Technical Parameters
|
Item |
Parameters |
|
Conveying Type |
Z Shape / C Shape |
|
Capacity |
1-8 m³/h (Customized) |
|
Lifting Height |
3.2 m (Customized) |
|
Machine Height |
3896mm (2L standard, customizable as needed) |
|
Power |
AC 220V / 380V 50/60Hz (Customized) |
More specifications and parameters can be customized according to customer requirements.
Features
1.Adjustable Conveying Speed – Supports controlled material feeding to match different production requirements.
2.Gentle Material Handling – Helps minimize material breakage during conveying.
3.Enclosed Conveying Design – Helps reduce material spillage and external contamination.
4.Customizable Lifting Height – Fits different production line layouts and transfer requirements.
5.Flexible Discharge Options – Available with single or multiple discharge outlets.
6.Multiple Construction Materials – Available in SUS304 stainless steel or carbon steel.
7.Food-Grade PP Buckets – Reinforced polypropylene buckets for suitable material handling applications.

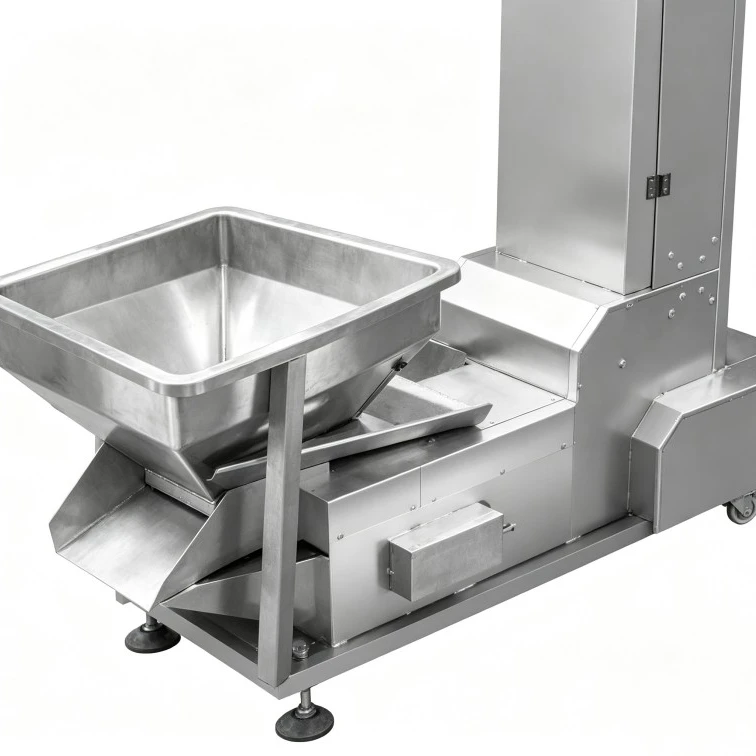

8.Optional Vibratory Feeder – Supports more uniform feeding into the Z type bucket elevator.
9.Easy Installation and Maintenance – Designed for convenient installation and routine maintenance.
Packaging Machine Compatibility
The Visou Z Type Bucket Elevator can be integrated with various weighing and packaging machines to create an efficient automated production line. It lifts bulk materials to the required feeding height and transfers them to the weighing or packaging equipment, ensuring smooth material flow and reducing manual handling.
Compatible equipment includes multihead weighers, linear weighers, VFFS packaging machines, and premade pouch packing machines. Customized integration is available based on your material, feeding height, and production line layout.
Applications
Potato chips
Peanuts
Biscuit
Pet food
Rice
Candy
FAQ
Q: What materials is the Z-Type Bucket Elevator suitable for?
A:
Suitable for conveying various products such as nuts, snacks, grains, pet food, and granular materials.
Q: Can the conveying height and capacity be customized?
A:
Yes, it can be customized according to the production line layout, conveying height, width, and capacity requirements.
Q: How is conveying stability guaranteed?
A:
A stable drive structure and optimized bucket design are adopted to achieve continuous and stable conveying, reducing material damage.
Q: Is the equipment easy to clean and maintain?
A:
Made of SUS304 stainless steel, the structure is simple, easy to clean and maintain, and meets hygienic production requirements.
