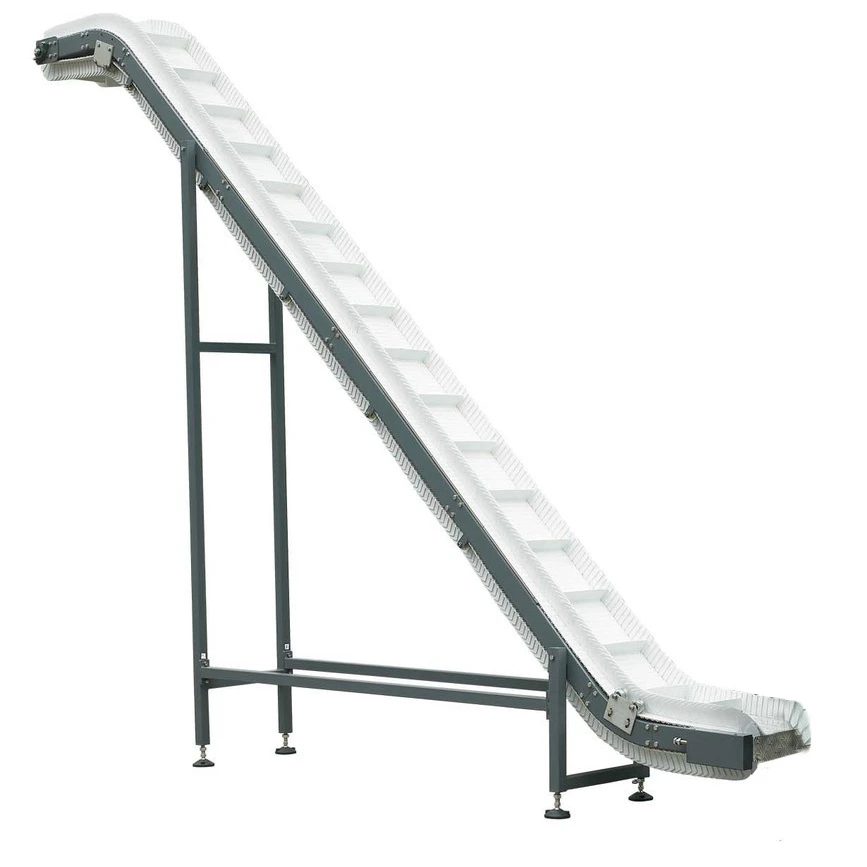

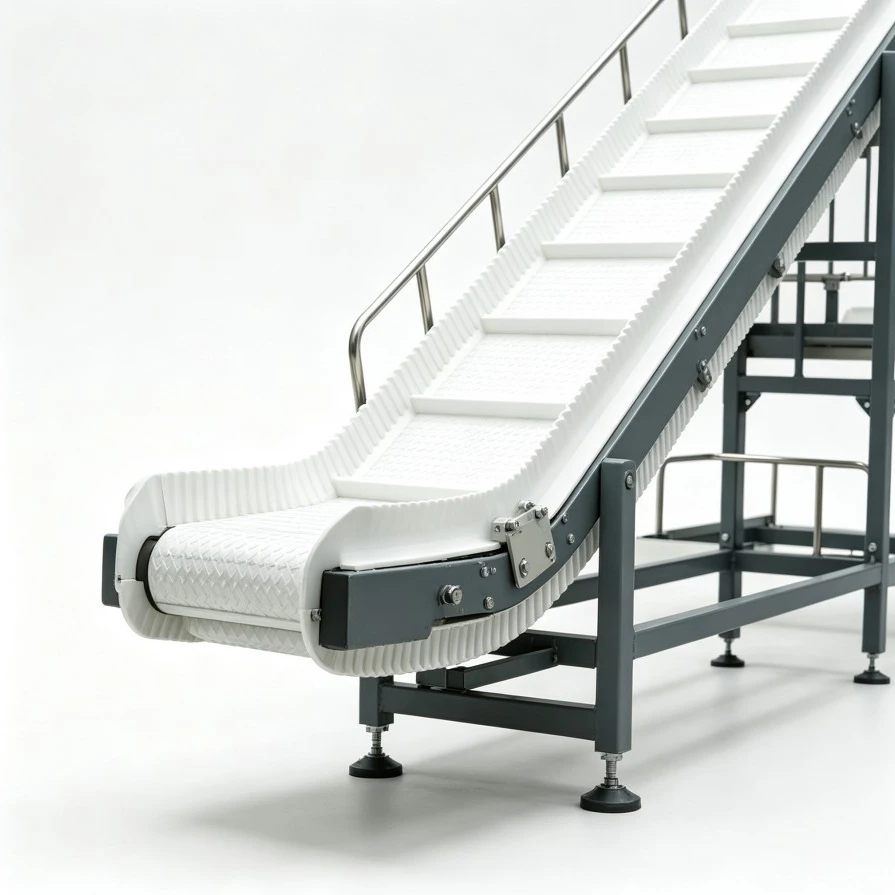

Chain Plate Elevator
Chain plate elevator are continuous lifting devices that use chain plates as the conveying medium. They are suitable for vertical or inclined conveying of materials between different heights. The equipment drives the chain plates through a chain, achieving stable and continuous lifting and transfer of materials. Utilizing a robust and durable chain plate structure, it features high load-bearing capacity, stable operation, and wide adaptability, meeting the needs of heavy-duty, high-volume, and long-distance conveying. It is widely used in the food, packaging, chemical, and daily chemical industries, providing reliable material conveying solutions for automated production lines.
Features
1.Durable Chain Plate Structure—Designed for stable conveying, with durable chain plates suitable for continuous material handling.
2. Efficient Inclined Conveying—Elevates materials to the required height, helping reduce manual handling and connect different production stages.
3. Adjustable Conveying Speed—Optional variable-speed control allows conveying speed to be adjusted according to material flow and production requirements.
4. Customizable Design—Lifting height, conveyor width, inclination angle, and inlet and outlet positions can be customized to suit different production layouts.
5. Seamless Production Line Integration—Connects with feeding, weighing, sorting, and packaging equipment to support continuous material transfer.
Technical Parameters
|
Item |
Parameters |
|
Discharge Outlet |
3250mm (Customized) |
|
Chain Plate Material |
SUS304 / PP (Food Grade Plastic) |
|
Frame Material |
SUS304 |
|
Baffle Spacing |
254mm (Adjustable) |
|
Power |
220/380V 50/60Hz |
Packaging Machine Compatibility
The Visou Chain Plate Elevator can be integrated with compatible weighing and packaging machines to transfer materials smoothly to the required feeding height. It helps connect conveying and packaging processes, supporting continuous material flow and improving production efficiency.
Compatible equipment includes multihead weighers, linear weighers, vertical form fill seal (VFFS) machines, and premade pouch packing machines. The elevator can be customized according to material characteristics, lifting height, and production line layout.
Applications
Potato
Vegetable
Frozen chicken nuggets
Frozen steak
Small packaging bag
Packaged snack foods
FAQ
Q: What types of food products can be conveyed by a chain plate elevator?
A:
chain plate elevators are suitable for a wide range of food products, including packaged frozen foods, meat and seafood, fruits and vegetables, and other items requiring stable, inclined transport. This conveying equipment can be configured based on product dimensions, weight, and shape, as well as specific operating conditions.
Q: How high can the chain plate elevator lift products?
A:
The lifting height can be customized according to your production line layout. We can adjust the conveyor length, inclination angle, inlet and outlet positions, and overall structure to match different height requirements and production-line configurations.
Q: Can the chain plate elevator be customized for my production line?
A:
Yes. The chain plate elevator can be customized according to your available space, product characteristics, required conveying capacity, lifting height, and connection points. We can also design the inlet and discharge positions to connect with other processing, weighing, packaging, or conveying equipment.
Q: Is the chain plate elevator easy to clean and maintain?
A:
Yes. For food-processing applications, the machine can be designed with easy-to-clean structures and food-grade materials. The conveyor surface and key components can be made accessible for routine cleaning, inspection, and maintenance, helping meet the hygiene requirements of food production environments.
Q: How do I choose the right chain plate elevator for my product?
A:
The selection mainly depends on the type and characteristics of your product, required conveying capacity, lifting height, conveyor width, speed, and production-line layout. You can provide us with your product information and basic requirements, and we can recommend a suitable configuration.
