Chain Plate Conveyor

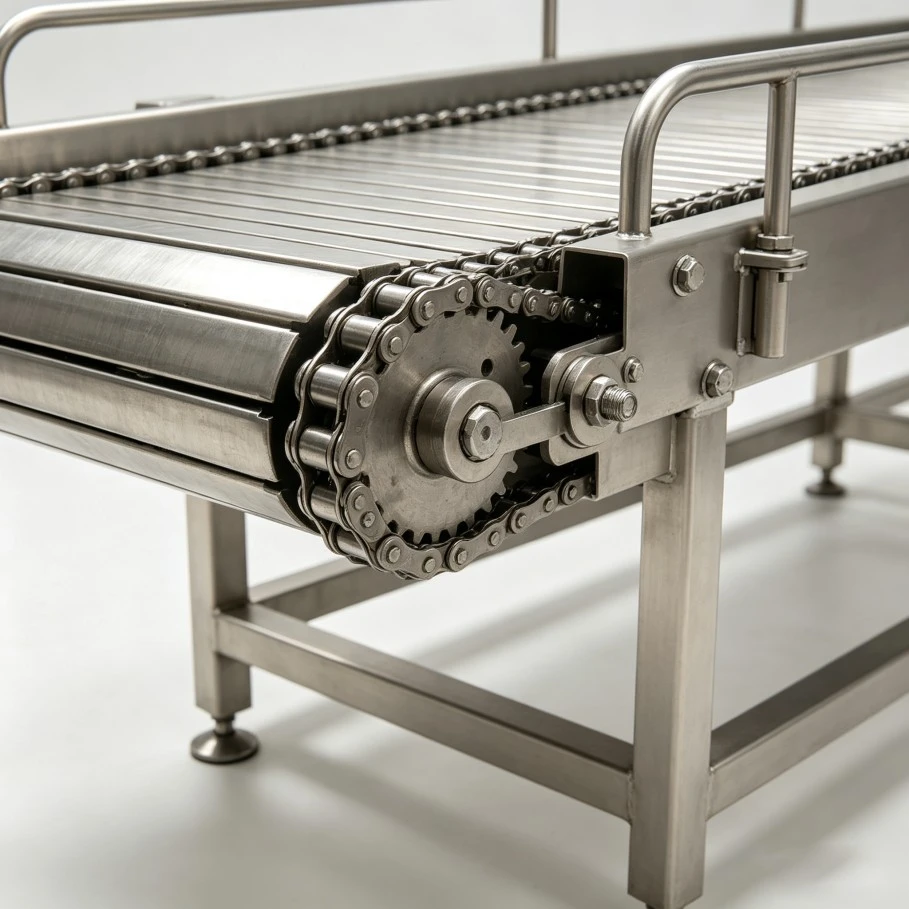

Chain Plate Conveyor Product Introduction： A chain plate conveyor is a vertical lifting device that uses chain plates as the load-bearing conveying surface. It is suitable for the continuous conveying of materials between different heights. The equipment drives the chain plates to circulate, achieving stable and efficient lifting and transfer of materials. It features high load-bearing capacity, stable operation, and wide adaptability. It can be customized according to production line layout, lifting height, conveying speed, and material characteristics. It is suitable for industries such as food, beverage, packaging, chemical, and daily chemical, and can meet the automated conveying needs of bottled products, boxed products, pallets, and heavier materials.
Technical Specifications
|
Item |
Specification |
|
Overall Belt Width |
400mm (Customized) |
|
Effective Belt Width |
340mm (Customized) |
|
Chain Plate Material |
SUS304 / Plastic (Customized) |
|
Machine Material |
SUS304 |
|
Conveying Capacity |
10-50m/min |
|
Power |
220/380V 50/60Hz |
Features
1. Durable Chain Plate Structure—The robust chain plate structure provides reliable support for continuous material conveying and is suitable for a variety of production environments.
2. Smooth and Stable Conveying—The continuous conveying surface helps maintain stable product movement, making it suitable for transferring products between different processing stages.
3. Adjustable Conveying Speed—Optional speed control allows the conveyor to match the operating speed and material flow of connected production equipment.
4. Customizable Conveyor Design—Conveyor length, width, chain plate material, side guides, and transfer height can be customized according to product characteristics and production line layout.
5. Easy Maintenance and Equipment Integration—A practical structural design supports routine maintenance and allows the conveyor to be configured for integration with compatible upstream and downstream equipment.

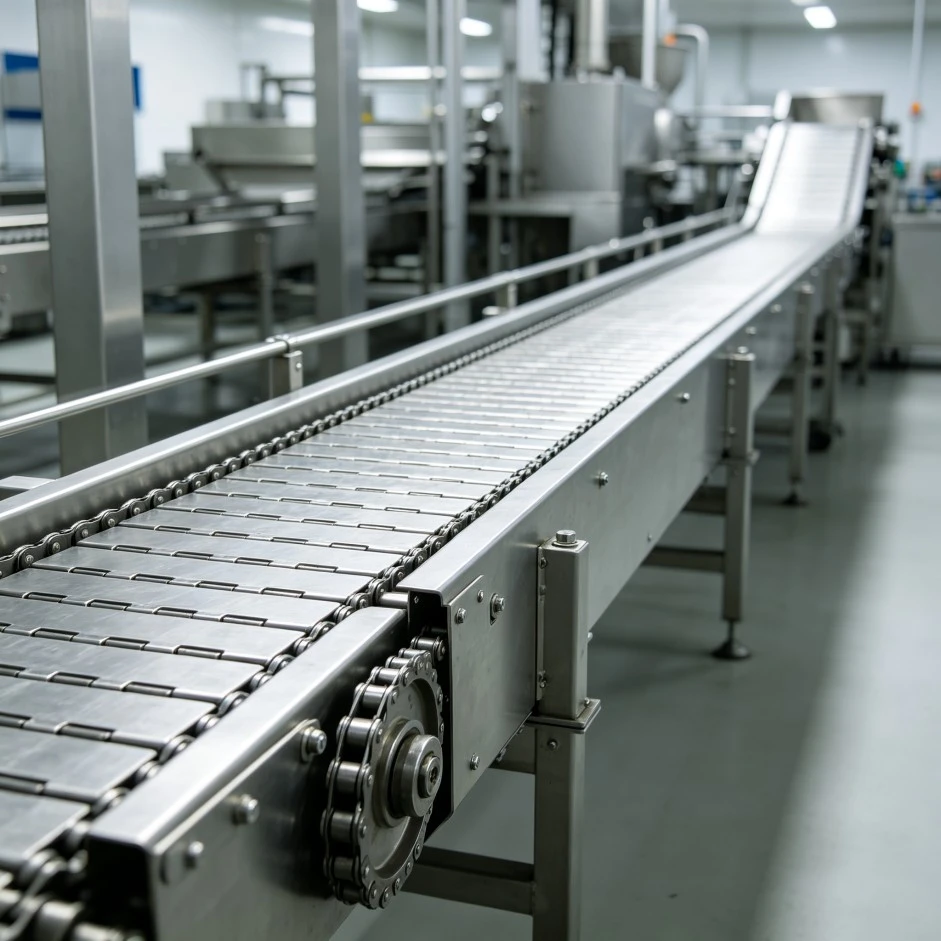

Production Line Integration
The Visou Chain Plate Conveyor can be integrated with compatible equipment to transfer products between different production stages. It supports material flow across processing, sorting, inspection, assembly, and packaging operations, helping improve production continuity and reduce manual handling.
Depending on the application, the conveyor can connect with filling machines, labeling machines, sorting systems, inspection equipment, weighing machines, packaging machines, and other production line equipment. Conveyor dimensions, chain plate materials, guide rails, and conveying speed can be customized to suit product characteristics, equipment interfaces, and factory layout.
Applications
Packaged Food Products
Packaged Food Products
Metal Components
Processed Foods
Fruits & Vegetables
frozen food
FAQ
Q: What materials are suitable for conveying with chain conveyors?
A:
Suitable for heavy-duty, large, boxed products, and automotive parts, etc.
Q: What are the main advantages of this equipment?
A:
High metal structure strength, impact resistance, long service life, and excellent load-bearing capacity.
Q: In which industries is it mainly used?
A:
Automotive manufacturing, heavy industry, machining, and other fields requiring the conveying of heavy components.
Q: How does it differ from a belt conveyor?
A:
Chain conveyors focus on heavy loads and impact resistance, while belt conveyors are suitable for light-load and cleanliness-critical applications.
Q: How stable is its operation?
A:
Robust structure, stable and reliable operation, suitable for long-term continuous operation.
