Horizontal Belt Conveyor

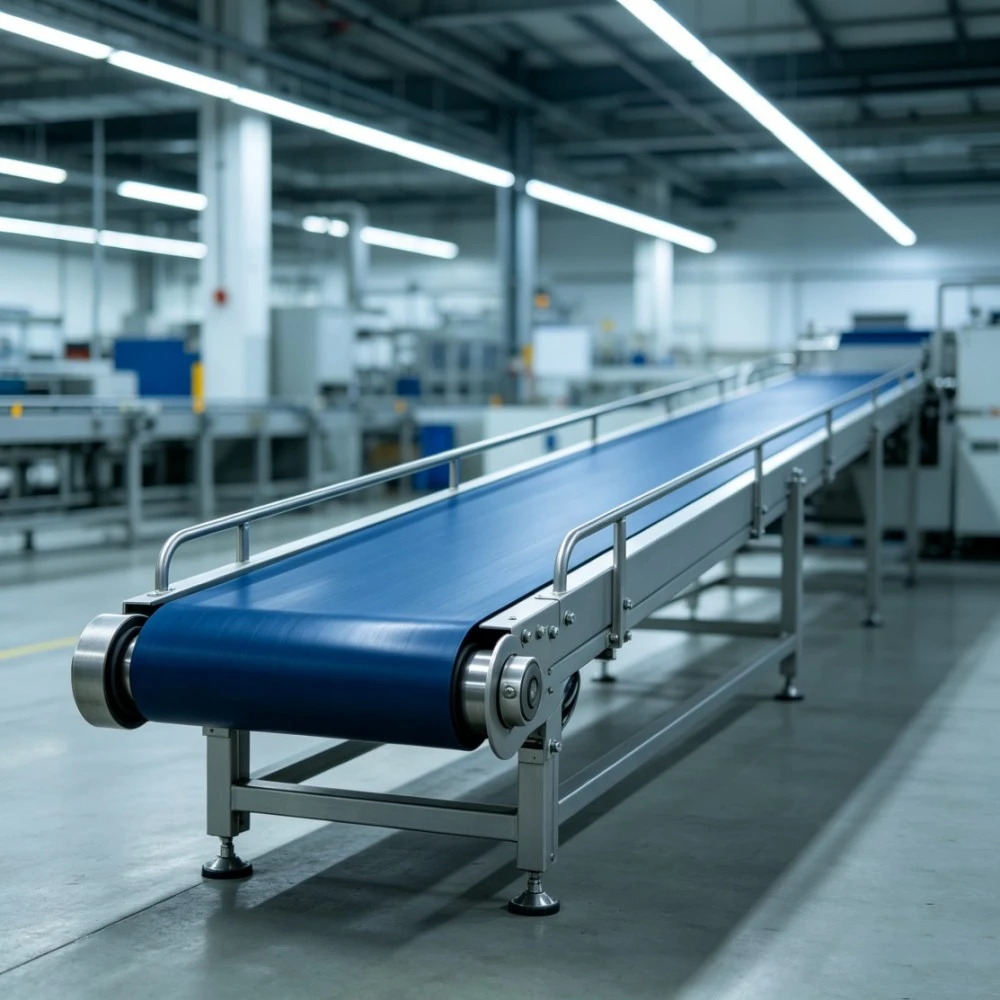

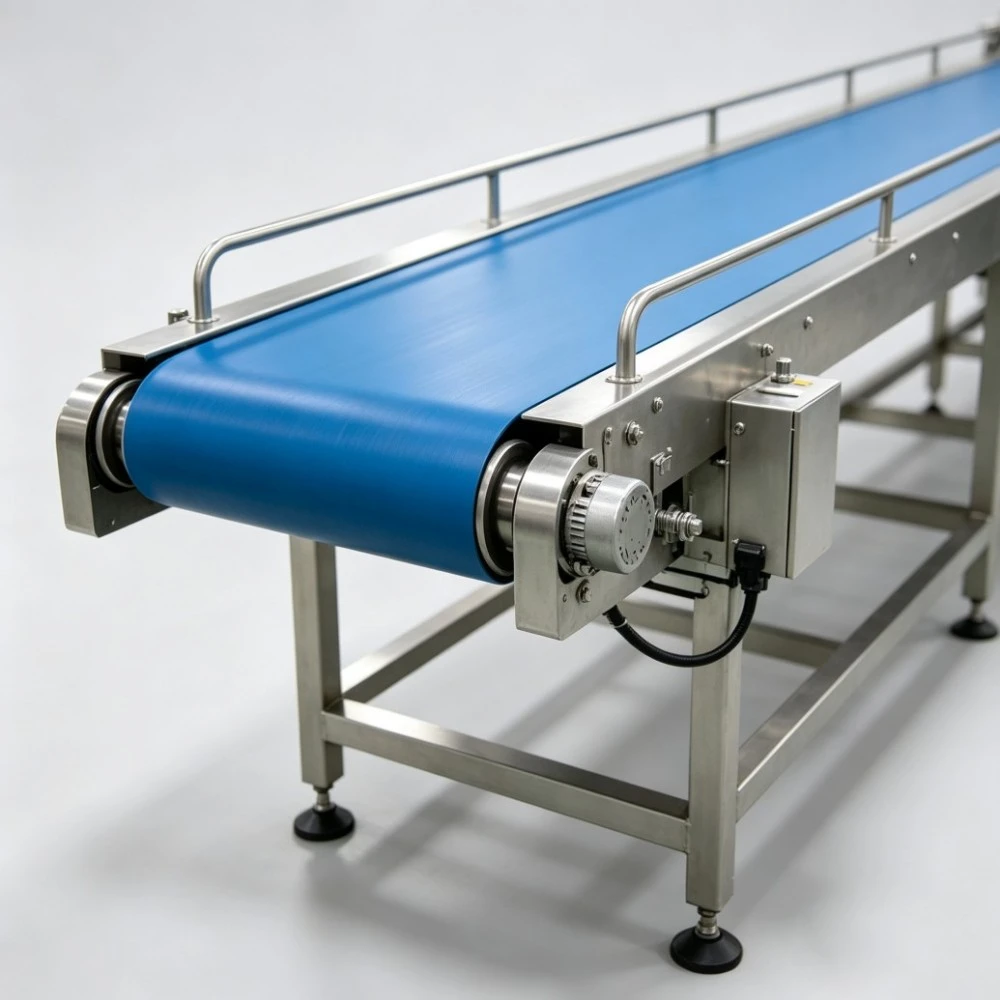

Belt Conveyor Product Introduction Belt conveyors are widely used continuous conveying equipment that uses a conveyor belt as the carrying medium. A drive unit propels materials smoothly, achieving efficient and continuous automated conveying. They can be flexibly customized according to production line layout, conveying distance, material characteristics, and capacity requirements. Different conveyor belt materials are available, and they are widely used in food, packaging, chemical, pharmaceutical, electronics, and other industrial fields, providing stable and reliable material conveying solutions for automated production lines.
Technical Parameters
|
Item |
Parameters |
|
Overall Belt Width |
400mm (Customized) |
|
Effective Belt Width |
340mm (Customized) |
|
Conveying Capacity |
10-50m/min |
|
Belt Material |
PET / PP / PU (Customized) |
|
Power |
220/380V 50/60Hz (Customized) |
Features
1. Smooth and Continuous Conveying—Provides a stable conveying surface for continuous product transfer between different production stages, helping reduce manual handling.
2. Adjustable Conveying Speed—Optional variable-speed control allows the conveying speed to be adjusted to match material flow and production requirements.
3. Customizable Belt Width and Length—Belt dimensions and conveyor layout can be customized according to product size, conveying distance, and available factory space.
4. Flexible Belt and Frame Options—PVC, PU, or other suitable belt materials can be selected according to the application, with stainless steel or other frame options available as required.
5. Easy Cleaning and Maintenance—Suitable belt and structural configurations help simplify routine cleaning and maintenance, with hygienic options available for food processing applications.
Packaging Machine Compatibility
The Visou Horizontal Belt Conveyor is designed to connect different stages of an automated production line, transferring products smoothly from upstream processing, sorting, or feeding equipment to downstream weighing, inspection, and packaging machines.
It can be integrated with compatible multihead weighers, checkweighers, metal detectors, VFFS packaging machines, and pouch packing machines, depending on the product type and production layout. Belt width, conveyor length, speed, and transfer height can be customized to suit equipment interfaces and material handling requirements, helping improve workflow efficiency and reduce manual product transfer.
Applications
Fruits and vegetables
Baking bread
Packaging Products
Quick-frozen steak
Metal fittings

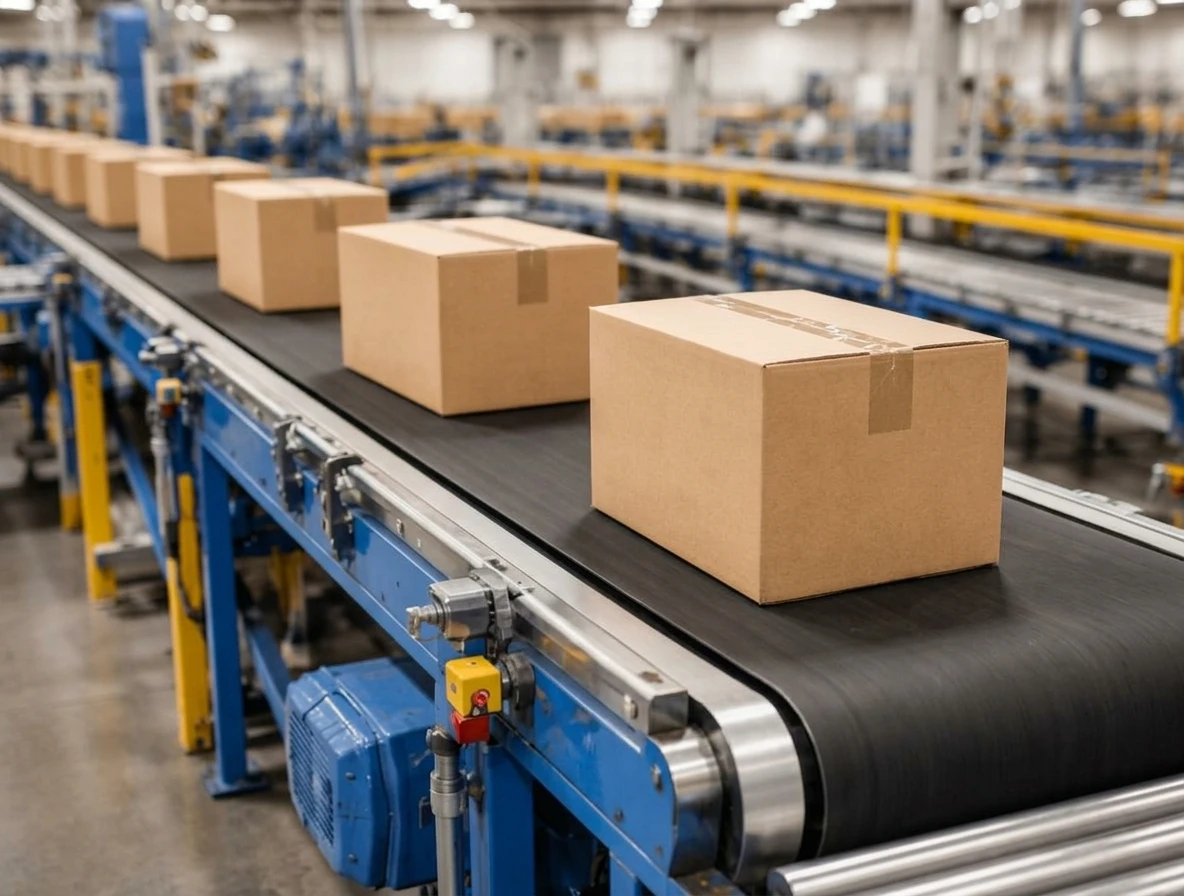

Carton shipping
FAQ
Q: What types of materials are belt conveyors suitable for conveying?
A:
Suitable for light-load, small-item materials, and scenarios requiring high cleanliness, such as food and pharmaceutical packaging lines.
Q: What are the main advantages of this equipment?
A:
Quiet operation, does not damage materials, low cost, and can achieve continuous and stable conveying.
Q: Can belt conveyors convey heavy or high-temperature materials?
A:
No. It is designed for light loads. For heavy-load or high-temperature materials, impact-resistant and high-temperature resistant models such as chain conveyors should be selected.
Q: What are the cleanliness and hygiene requirements for belt conveyors?
A:
Highly applicable, commonly used in the food and pharmaceutical industries. The smooth surface is easy to clean, meeting high hygiene standards.
Q: Is the operating noise high? Is maintenance complex?
A:
The operating noise is very low, the structure is relatively simple, maintenance is convenient, and daily costs are controllable.
