The customer is a nut processing company that needed to transfer bulk nuts from low-level equipment to elevated weighing and packaging equipment. Due to the height difference between the upstream and downstream machines and limited floor space, a conventional horizontal conveying solution was not suitable for the existing layout.

Conveyed Materials: Bulk peanuts, almonds, cashews, sunflower seeds and other granular nut products.

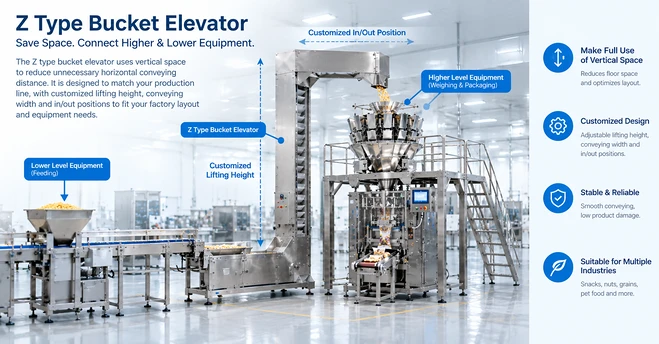

Based on the customer's feeding position and production line layout, we provided a customized Z Type Elevator for the project.

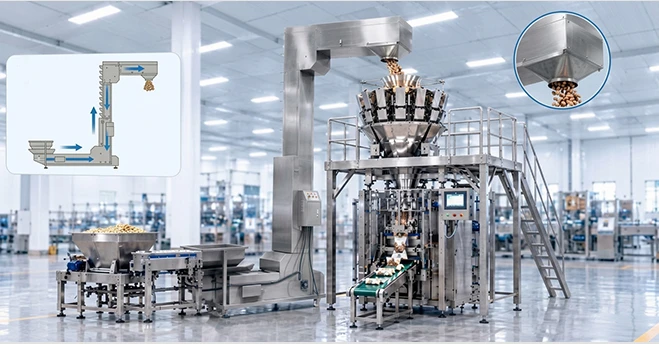

The elevator receives bulk nuts at the lower level and continuously elevates them to the required height.

To achieve stable conveying from a lower level to a higher level while making efficient use of the available space and connecting with downstream equipment.02｜Low-Level Feeding: Stable Material Intake

During the elevating process, maintaining a stable and continuous material flow is important for downstream processing and packaging.


The Z Type Elevator is designed to provide controlled conveying of bulk nuts, helping transfer materials smoothly between different production levels. The conveying configuration can be adjusted according to material characteristics, required conveying capacity, lifting height, and production line requirements.

Key Features:
●  Stable material elevation
●  Continuous conveying
●  Customized conveying height
●  Customized conveying width
●  Flexible inlet and outlet configuration
●  Suitable for different production layouts

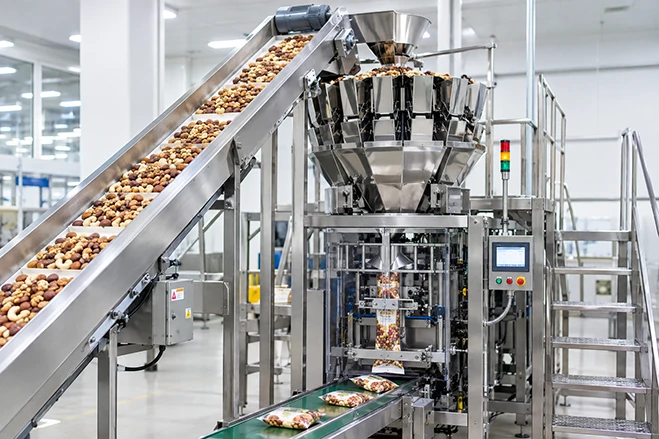

The elevator can be designed according to the position and height of downstream equipment, allowing bulk nuts to be transferred directly to the next stage after elevation.


Depending on the production process, the Z Type Elevator can be integrated with:
Multihead Weigher · Packaging Machine · Metal Detector · X-Ray Inspection System · Checkweigher · Sorting System · Conveyor


This provides a continuous conveying link between different stages of the production line.

The Z Type Elevator can be used for conveying a variety of bulk food materials, particularly products that need to be elevated to different production levels.

Typical applications:
●  Nuts
●  Seeds
●  Peanuts
●  Cashews
●  Almonds
●  Potato Chips
●  Snack Foods
●  Other Dry Bulk Food Products

It can be used as an individual elevating unit or integrated with weighing, packaging, inspection, sorting, and conveying equipment to form a complete automated production line.
